    sigma solo

    A standalone force tensiometer with full automation.

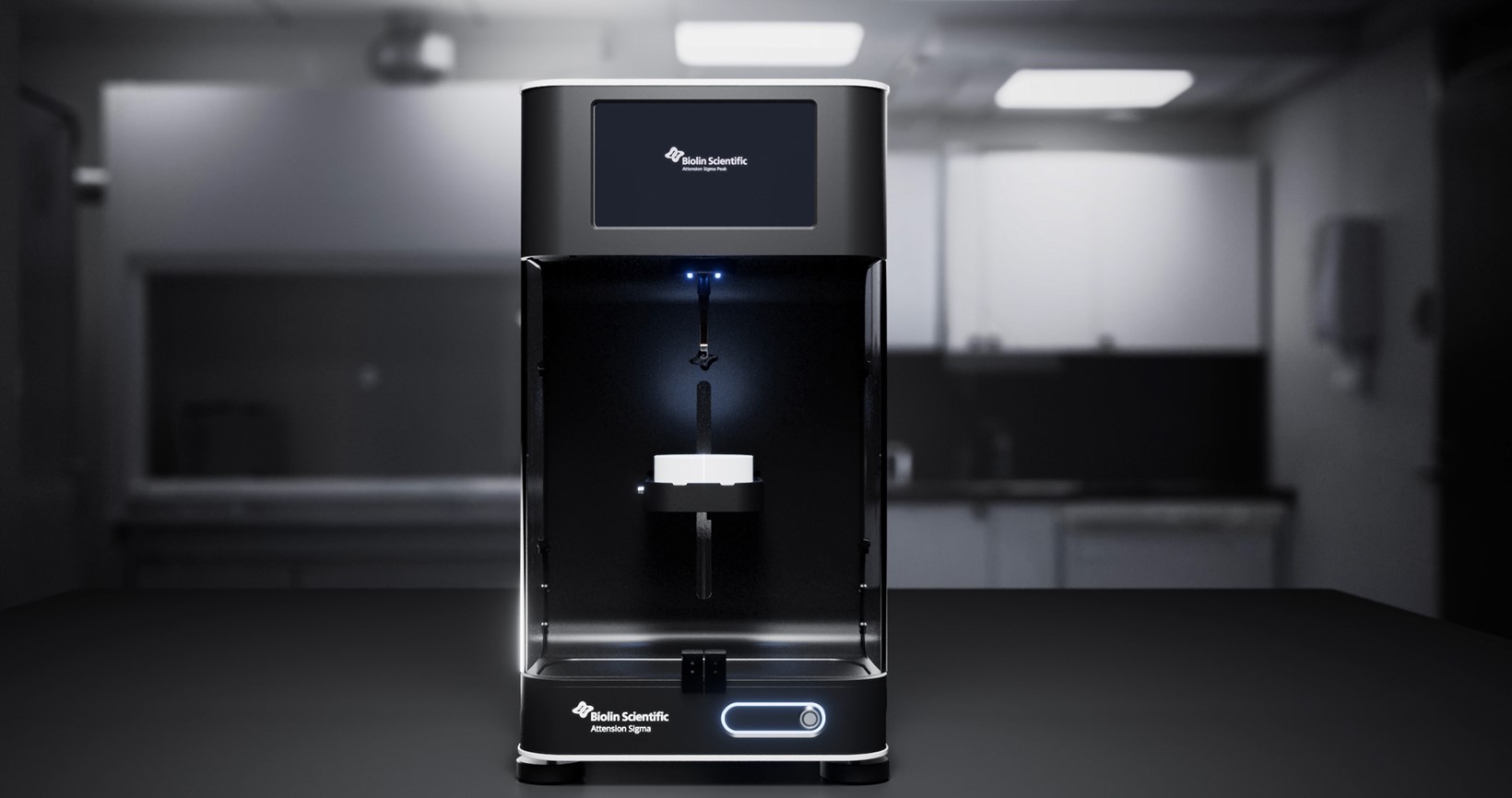

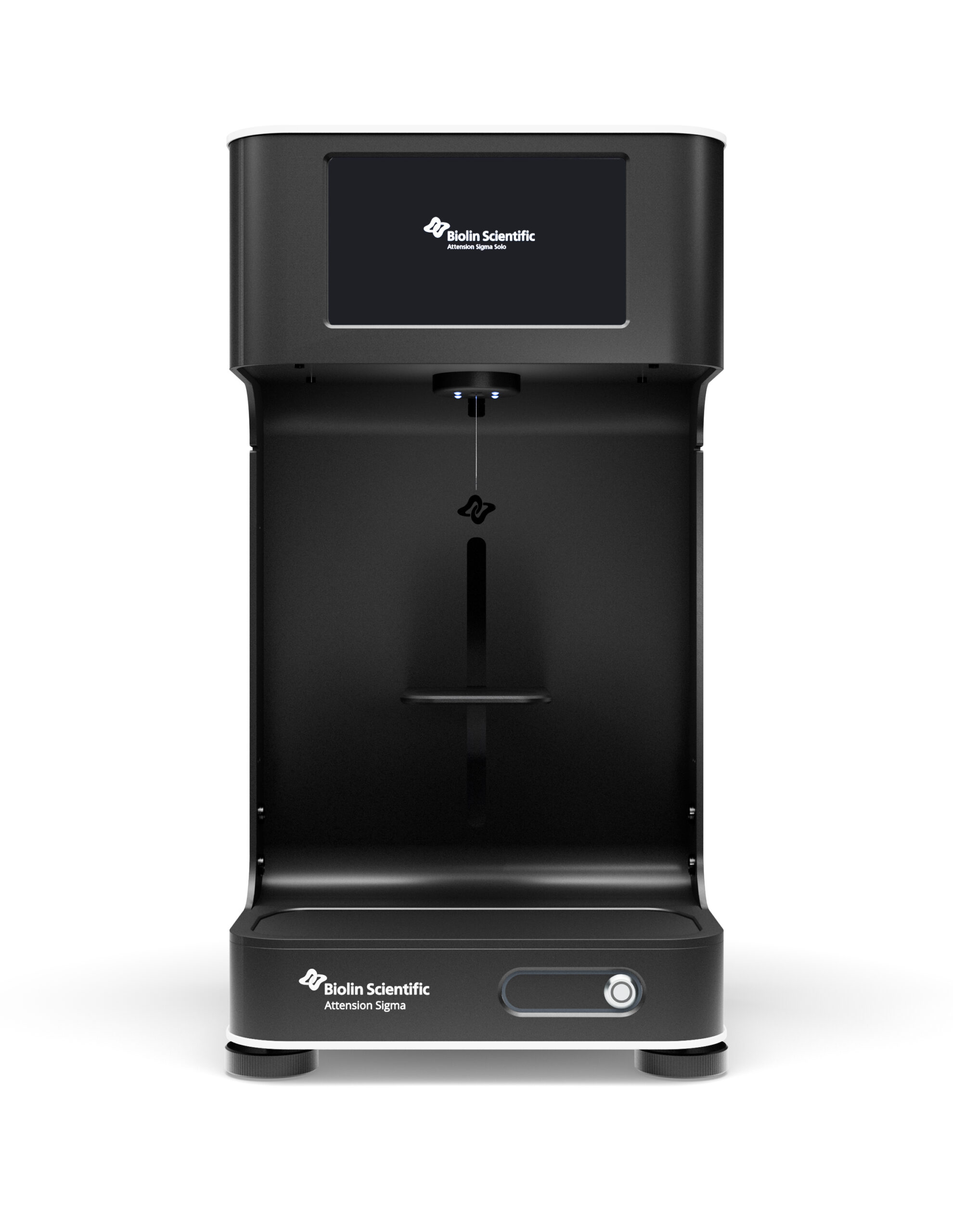

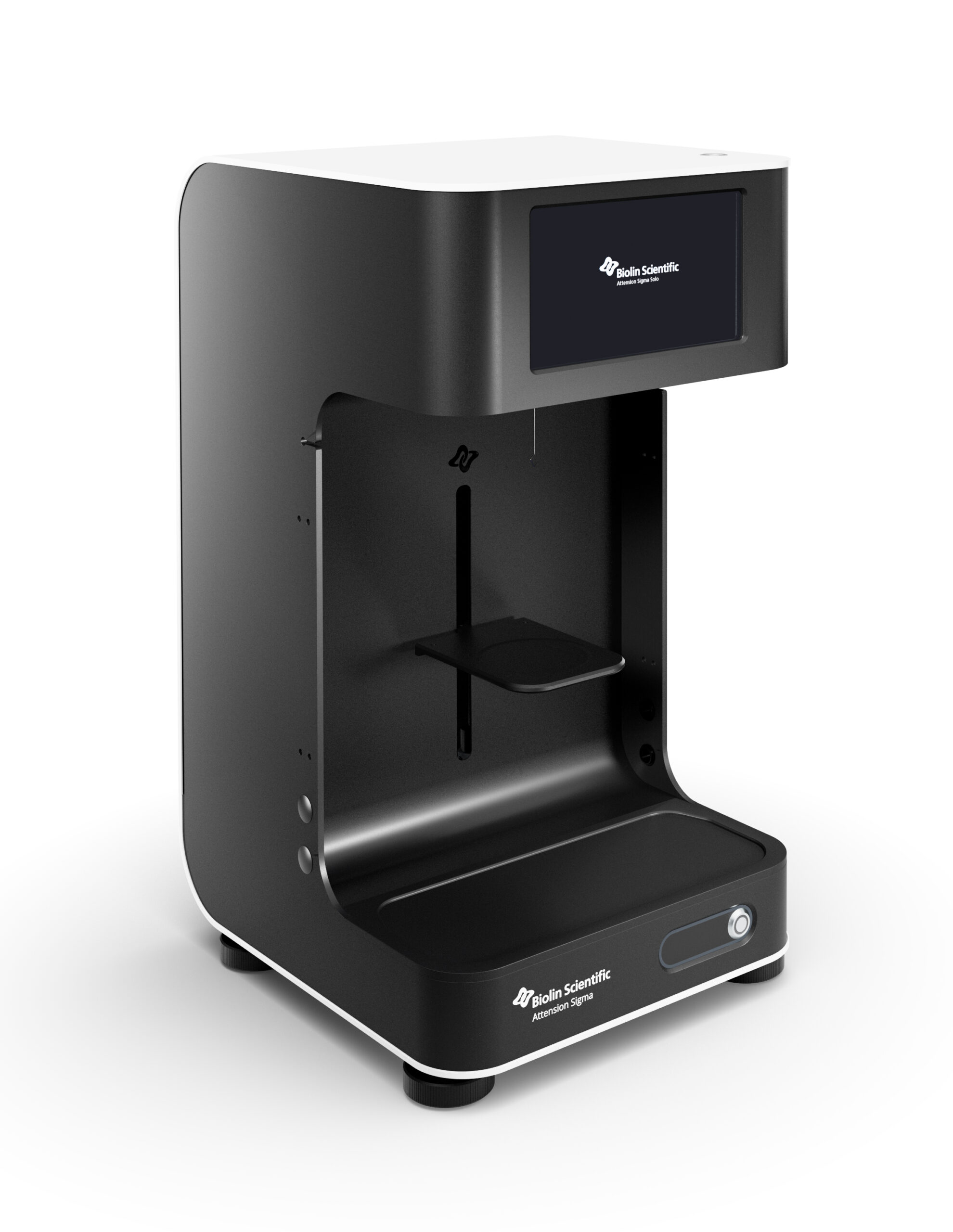

    The Attension® Sigma Solo from Biolin Scientific is an accurate standalone force tensiometer with automation for routine testing and quality control. It measures surface and interfacial tension and liquid density within minutes, operated directly from the integrated touch display.

    Request Information
    sigma solo - image 1
    sigma solo - image 2
    sigma solo - image 3
    sigma solo - image 4
    sigma solo - image 5
    sigma solo - image 6
    sigma solo - image 7
    sigma solo - image 8

    overview

    about this product

    Attension Sigma Solo combines dependable automation, established measurement techniques and true stand-alone operation to deliver accurate surface tension, interfacial tension and liquid density data, measurement after measurement. Whether you are running quality control, qualifying incoming materials or performing routine testing. Sigma Solo is your reliable force tensiometer for everyday analysis.

    What you can measure
    Measurement Method
    Surface tension Du Noüy ring, Wilhelmy plate or rod
    Interfacial tension Du Noüy ring, Wilhelmy plate or rod

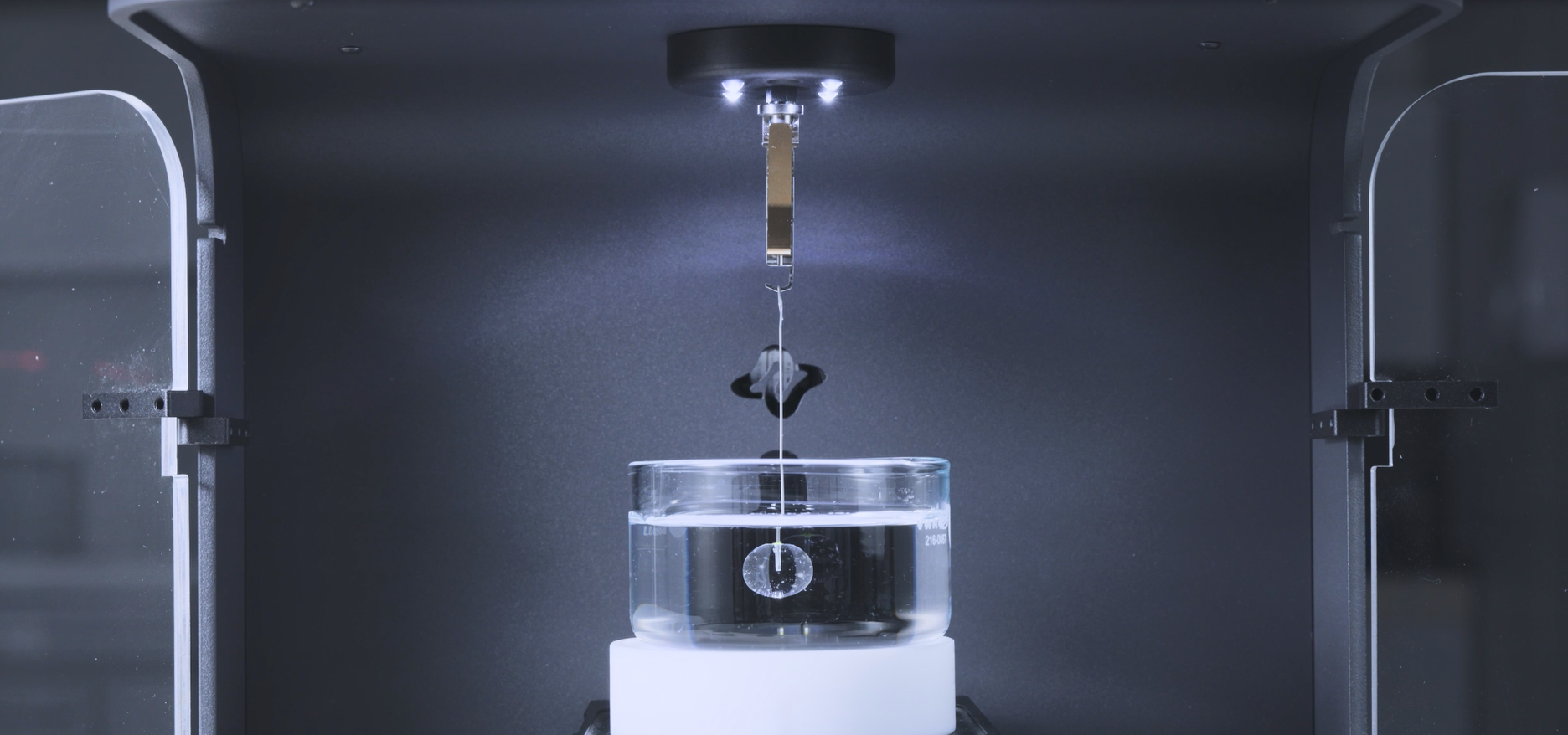

    Density Liquid density measurement



    Videos

    sigma solo - video 1

    WHY CHOOSE THIS PRODUCT

    Three reasons to invest

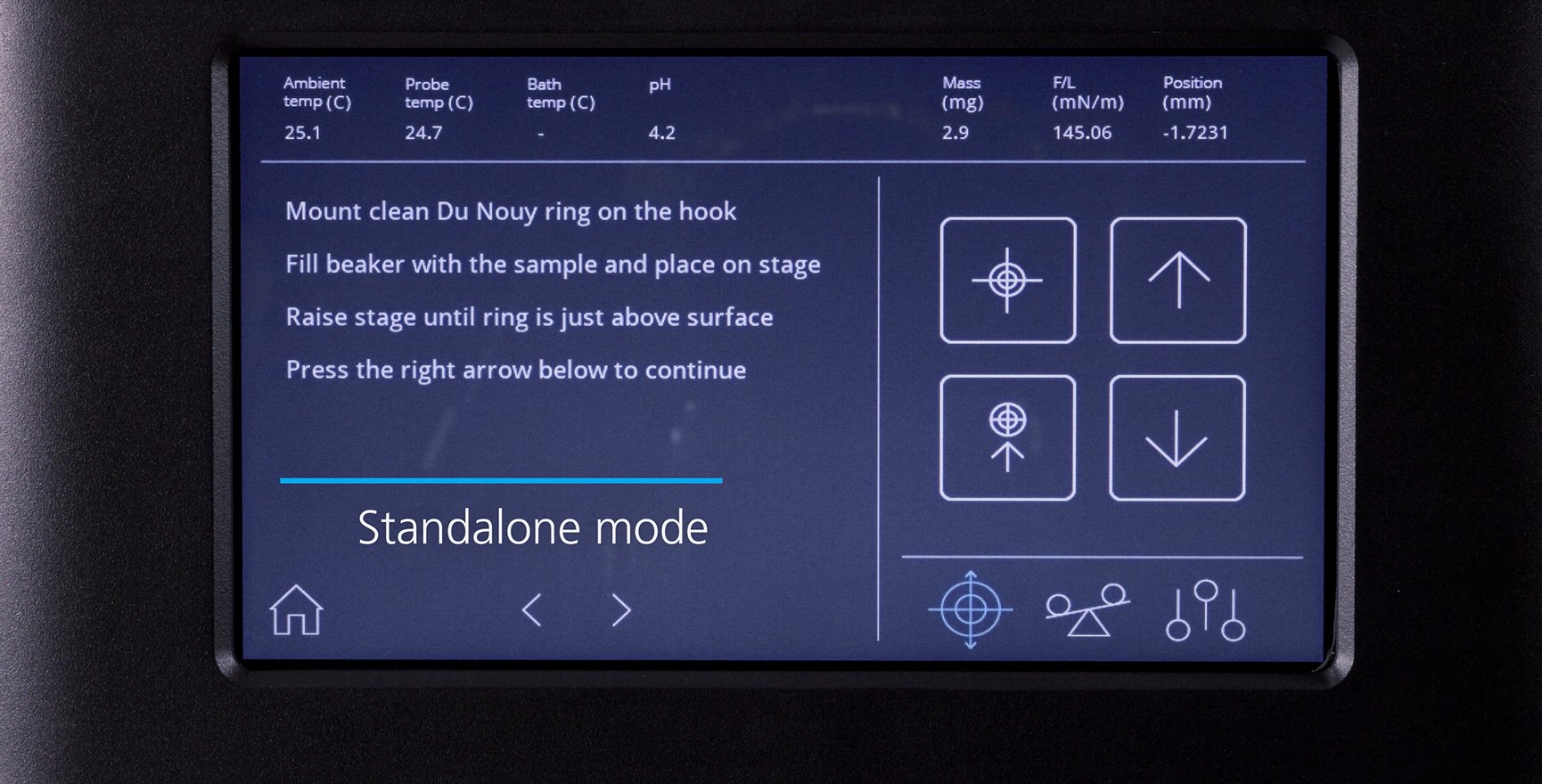

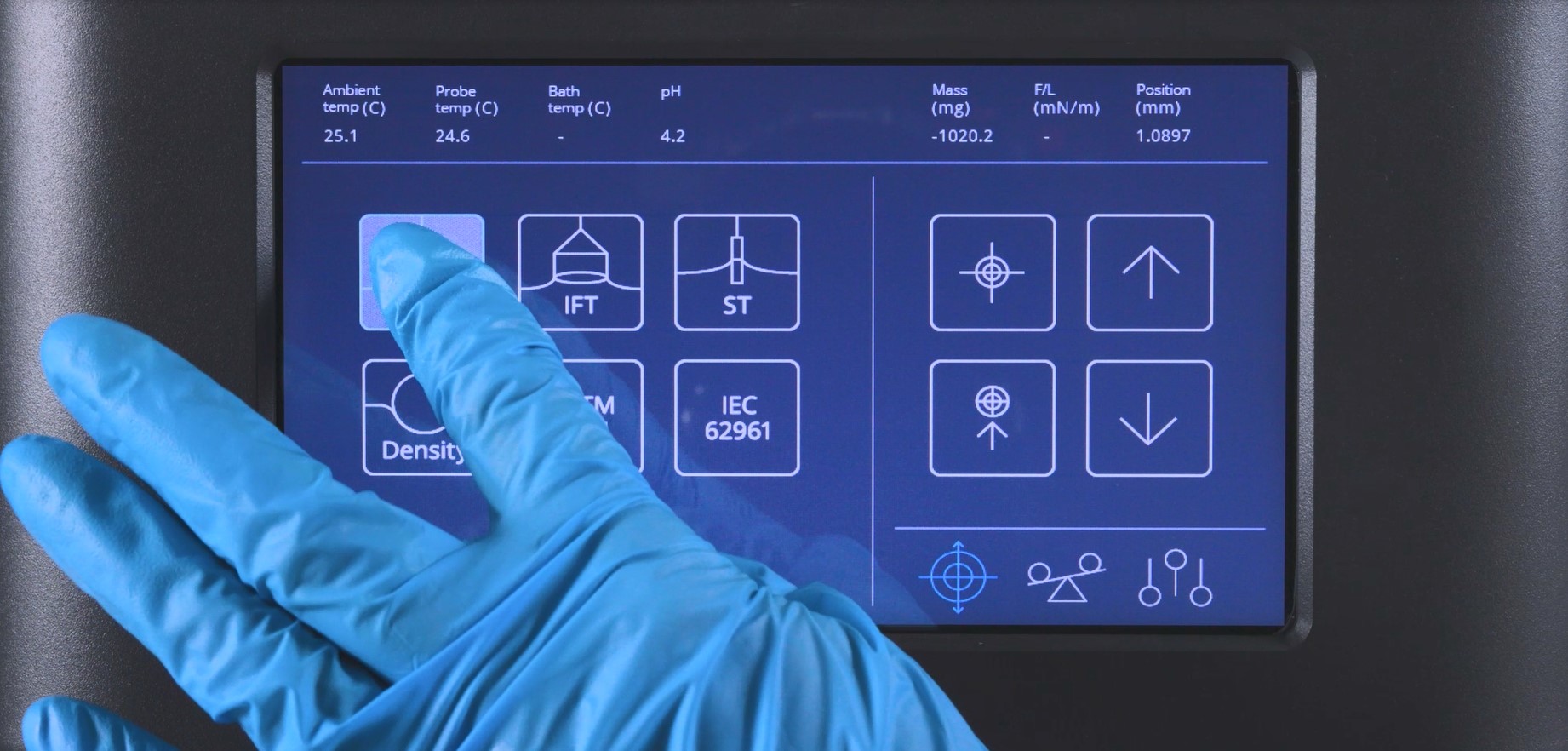

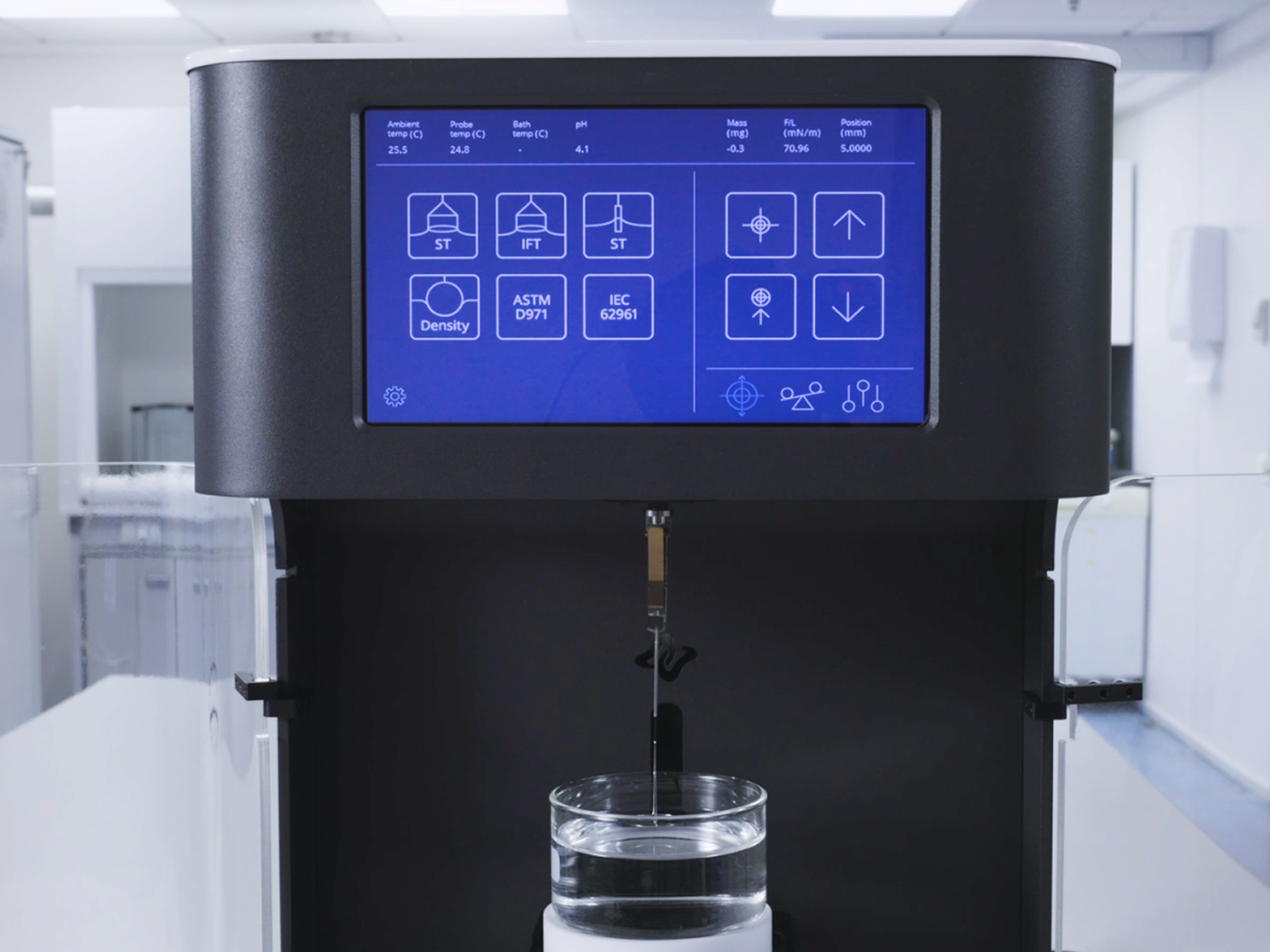

    • Standalone operation with full automation. The instrument is fully automated and measurements run with a single tap. Embedded software guides you through surface tension, interfacial tension and liquid density measurements, and results appear on screen the moment each one is complete.

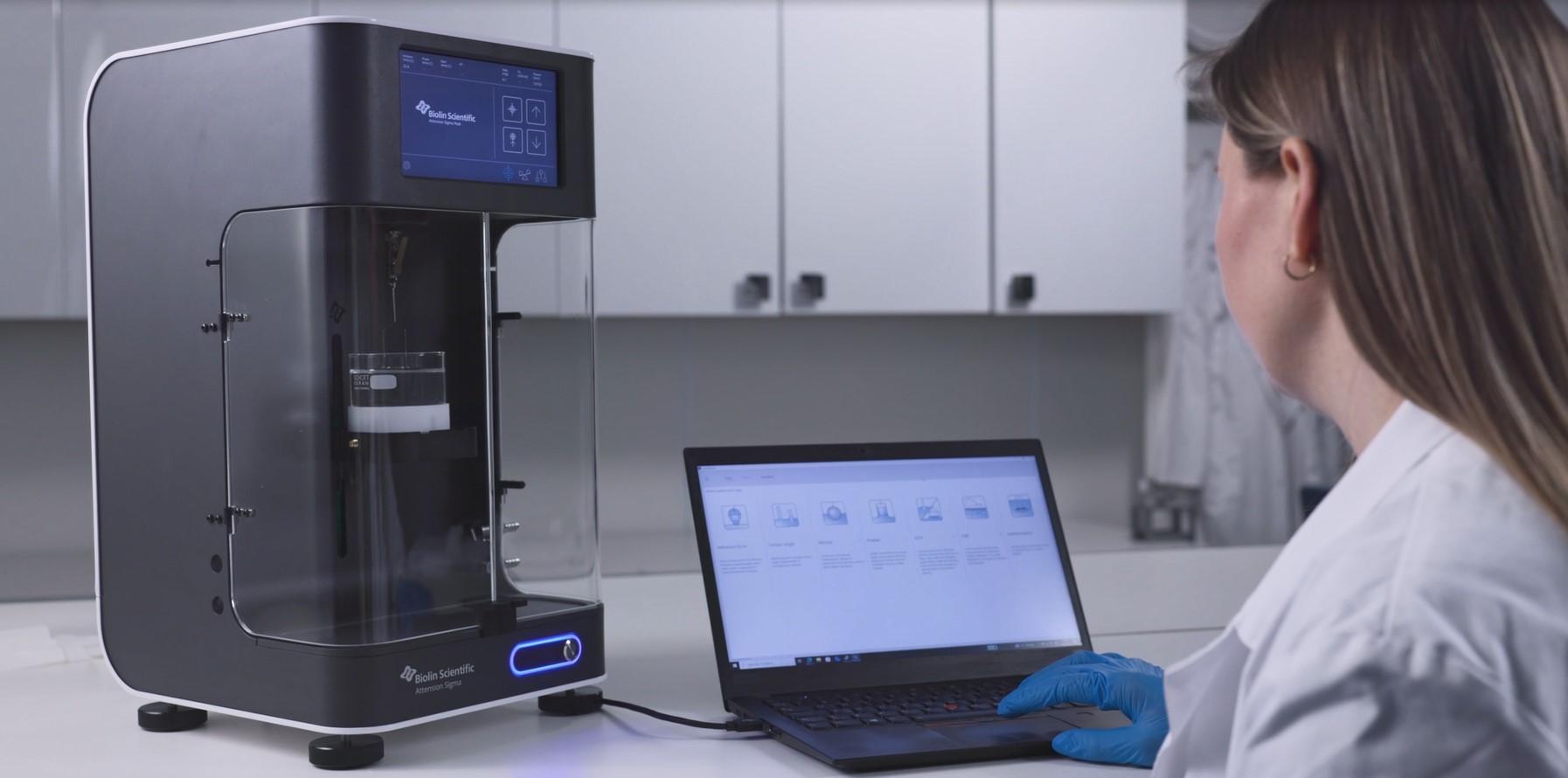

    • Easy result transfer. Modern USB-C connectivity makes saving data simple. Connect to a PC or phone to transfer the PDF reports the instrument produces automatically, and store up to 100 measurements in instrument memory.
    • Advanced options. Sigma Solo can be fitted with protective doors to reduce the effect of air flow on results, an advanced sample stage that supports a stirrer and temperature and pH probes, and an ionizer to eliminate static charge.

    Specifications & Performance

    Measuring range (mN/m)

    0.01

    Density range (g/cm3)

    0...2.2

    Density resolution (g/cm3)

    0.001

    Maximum load (g)

    5

    Sample stage

    motorized

    Sample stage speed (mm/min)

    0.001...800

    Temperature control range (°c)

    -20...+200

    Software

    Standalone

    Results Output

    .pdf

    Compatible Add-Ons

    No data was found
