    Theta Pico

    Contact angle meter that measures the wettability on small areas effectively.

    The Attension® Theta Pico from Biolin Scientific dispenses picoliter-sized droplets for contact angle measurements on very small areas, such as single fibers, miniature components and inkjet applications. High magnification optics together with a best-in-class camera enhanced by DropletPlus technology make it possible to accurately visualize droplets smaller than 100 micrometers in diameter.

    Request Information

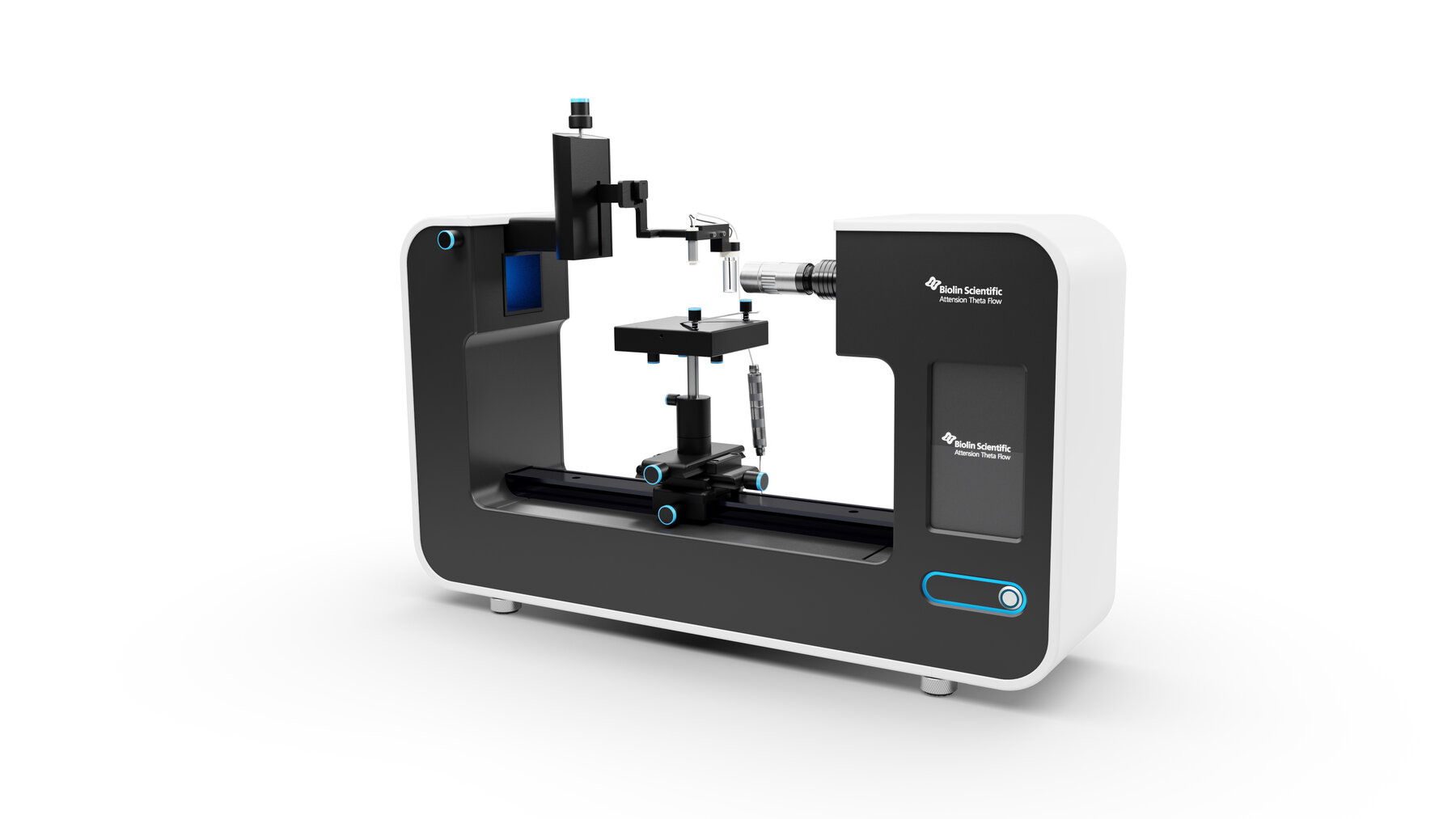

    Biolin Theta Pico Optical Tensiometer
    Theta Pico - image 2
    Theta Pico - image 3
    Theta Pico - image 4
    Theta Pico - image 5

    overview

    about this product

    Theta Pico is based on the high-end Theta Flow which is characterized by its high automation level, ease of use, and high-end accuracy. Check out the system specifications below.

    What you can measure
    Measurement Method
    Static contact angle Sessile drop

    More Infromation

    CLICK FOR MORE INFORMATION

    WHY CHOOSE THIS PRODUCT

    • Measurements on very small areas. Picoliter-sized droplets make it possible to measure contact angle on single fibers, miniature components and other small features where a standard droplet would be too large.
    • High-resolution droplet imaging. High magnification optics and a best-in-class camera enhanced with DropletPlus technology accurately visualize droplets smaller than 100 micrometers.
    • Suited to inkjet and fiber applications. Precise dispensing of tiny droplets matches the scale of inkjet research and single-fiber wettability studies.
    • Backed by OneAttension software. The same all-inclusive software as the rest of the Theta range, with live analysis, automatic drop fitting and easy data export.

    Specifications & Performance

    Measuring range (°, mN/m)

    0…180, 0.01…2000

    Accuracy (°, mN/m)

    ±0.1, ±0.01

    Maximum sample size (mm)

    Unlimited×100×360

    Maximum resolution (px)

    2592 x 2048 (5 MP)

    Maximum measuring speed (fps)

    3422

    Compatible Add-Ons

    No data was found
