    QSense Analyzer

    The QSense Analyser is a research-grade QCM-D system from Biolin Scientific offering reliable real-time monitoring of molecular adsorption and thin-film properties with nanogram mass resolution.

    Request Information

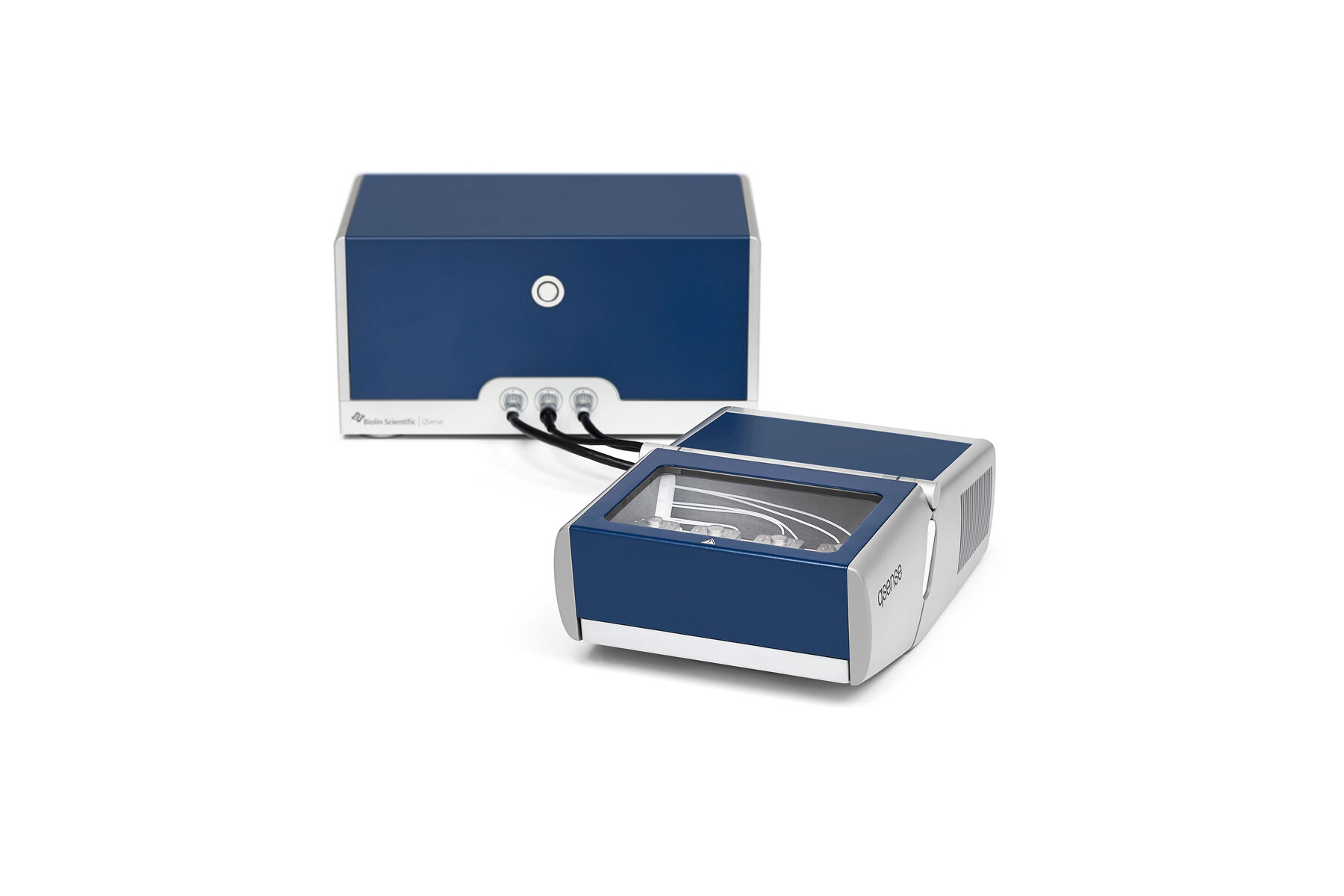

    Biolin QSense Analyzer QCM-D

    overview

    about this product

    The QSense Analyser is a well-established, research-grade QCM-D (Quartz Crystal Microbalance with Dissipation) system from Biolin Scientific for real-time monitoring of molecular adsorption, biomolecular interactions, and thin-film formation. By simultaneously measuring changes in resonance frequency and energy dissipation at multiple overtones, the QSense Analyser provides both mass uptake and viscoelastic information about adsorbed films — enabling researchers to distinguish between rigid and soft, hydrated films. It is widely used in biosensor development, biomaterial characterization, drug delivery research, and surface engineering. NewRoad provides the QSense Analyser in Israel with full installation and applications training.

    Videos

    QSense Analyzer - video 1

    WHY CHOOSE THIS PRODUCT

    Simultaneous frequency and dissipation monitoring for complete film characterization Distinguishes between rigid and viscoelastic adsorbed films Nanogram mass sensitivity for monolayer detection Multiple overtone measurement at up to 7 harmonics Widely validated in biosensors, biomaterials, and surface science research

    Specifications & Performance

    Measurement principle

    QCM-D (frequency + dissipation)

    Mass sensitivity

    ~1.8 ng/cm² per Hz (Sauerbrey)

    Overtones measured

    3rd, 5th, 7th, 9th, 11th, 13th

    Temperature range

    4–65°C

    Flow rate

    0.01–1 mL/min

    Frequency resolution

    0.1 Hz

    Compatible Add-Ons

    No data was found
