Zoom Microscopes

Optosigma Zoom Microscopes are benchtop stereo and macro zoom optical systems for visual inspection, assembly, soldering, and sample preparation tasks requiring variable magnification without objective changes.

Stereo zoom microscopes:
– Zoom ratio: 1:6 to 1:10 depending on model (e.g. 7x to 45x with auxiliary objectives)
– Binocular and trinocular head versions; interpupillary distance adjustment
– Working distance: 90 mm to 150 mm at base zoom; allows hand tools and probes under objective
– Field of view: 30 mm at lowest magnification for wide area inspection
– Coaxial reflected light illumination stand or transmitted base for transparent samples

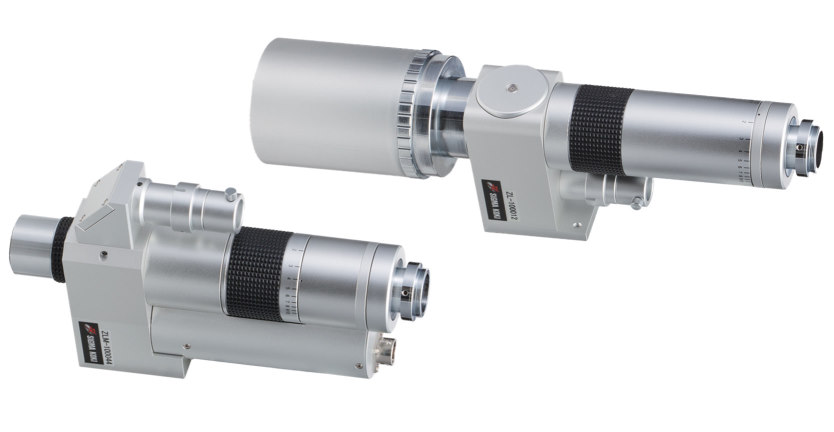

Macro zoom optical systems:
– Afocal zoom body: magnification changes without focus shift; parfocal over full zoom range
– Motorized zoom versions: remote-controlled zoom and focus for automated inspection systems
– C-mount camera adapter: attach scientific cameras for documentation and measurement
– Apochromat auxiliary objectives: 0.5x to 2x; extend zoom range without optical aberrations

Illumination:
– LED ring illuminator: shadowless coaxial illumination for surface inspection
– Cold light fiber guides: for heat-sensitive samples
– Transmitted LED base: for thin sections and transparent materials

NewRoad provides Optosigma zoom microscopes in Israel for electronics inspection, materials analysis, biological dissection, and industrial assembly.
