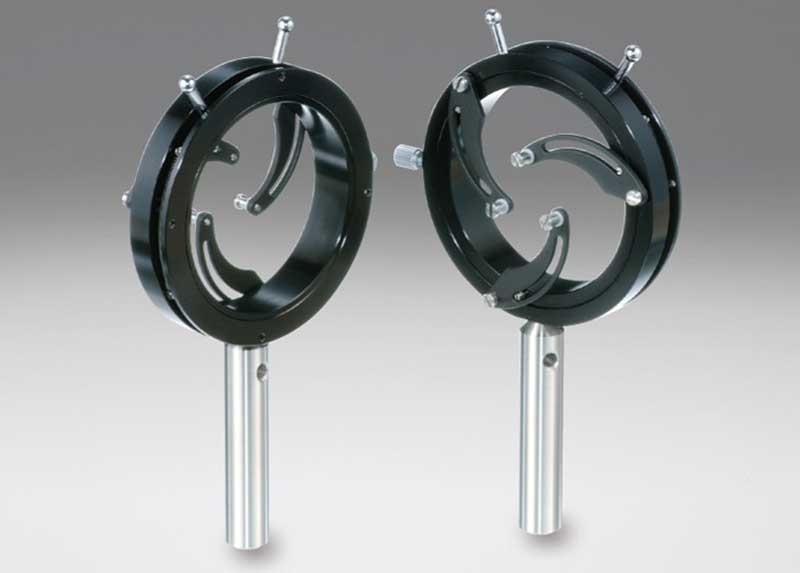

Lens Mounts

Optosigma Lens Mounts are mechanical holders designed to position, secure, and protect circular and rectangular optical elements in optical systems. They are available in a range of configurations to suit different alignment requirements and optical element sizes.

Fixed lens mounts:
– Retaining ring or spring-clip retention for circular optics
– Available for diameters from 6 mm to 100+ mm
– Suitable for fixed optical positions in OEM designs and lab setups

Rotating lens mounts:
– 360-degree continuous rotation of the optical element
– Used for wave plates, polarizers, and birefringent elements requiring angular orientation
– Graduated rotation scale for repeatable positioning

XY-adjustable lens mounts:
– Independent X and Y translation for centering optics on optical axis
– Useful for spatial filters, pinhole alignment, and beam shaping
– Travel typically 3-6 mm per axis

Tilting mounts:
– Single or dual axis tilt adjustment for wedge compensation and beam steering
– Used for introducing controlled angular deviation in beam paths

Compatibility:
– Standard thread and post mounting (M6, 1/4-20); fits Optosigma rail and cage systems
– SM1 and SM2 threaded barrel options for integration with lens tube systems

NewRoad provides Optosigma lens mounts in Israel for optical system builders, research laboratories, and OEM instrument manufacturers.
