S-Beam

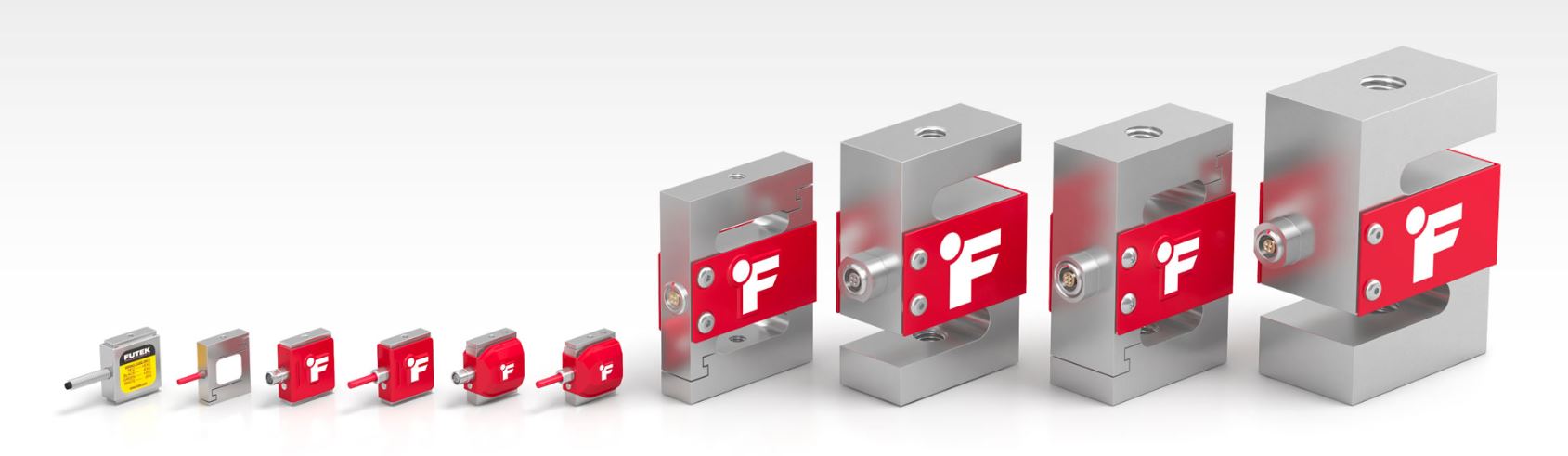

FUTEK S-Beam load cells are named for their distinctive S-shaped profile, which enables simultaneous tension and compression measurement from a single sensor. The double-bending beam design provides a highly linear output across the full rated capacity, with minimal sensitivity to off-axis forces when properly constrained. The through-hole mounting configuration allows the sensor to be integrated into mechanical assemblies using standard hardware, making S-Beam load cells one of the most versatile and widely deployed force sensor configurations for both laboratory and industrial use.

FUTEK’s S-Beam sensors are manufactured with premium alloy steel or stainless steel elements, with stainless steel options providing IP68 protection for wash-down, outdoor, or corrosive environments. The strain gauge bridges are fully temperature-compensated to maintain accuracy over wide temperature ranges, and sensors are available in capacities from sub-Newton gram-force ranges up to several hundred kilonewtons, covering everything from precision laboratory balances to industrial crane scales and process weighing systems.

Electrical output is a standard millivolt-per-volt (mV/V) signal compatible with any strain-gauge signal conditioner or data acquisition system. FUTEK also offers S-Beam variants with integrated amplifiers providing analog voltage (0–5V, 0–10V, ±10V) or current (4–20 mA) outputs for direct PLC or controller input without additional signal conditioning, as well as digital output options including USB and CANbus for direct computer connection.

Typical S-Beam applications include material testing machines in tension and compression, hanging weighing systems for industrial processes, force measurement in robotic end-effectors, wire tension monitoring in cable and filament production, and component testing in quality control. NewRoad provides FUTEK S-Beam load cells in Israel for research laboratories, industrial automation, and custom machine builders requiring reliable bidirectional force measurement.
